What is an IP65 ABS Plastic Enclosure?
IP65 refers to a specific level within the ingress protection(IP)rating system:
6 indicates complete protection against dust and solid particles
5 means the enclosure is protected against water jets from any direction
As a result, IP65 enclosures are well suited for outdoor environments where dust is present and water splashing is likely.

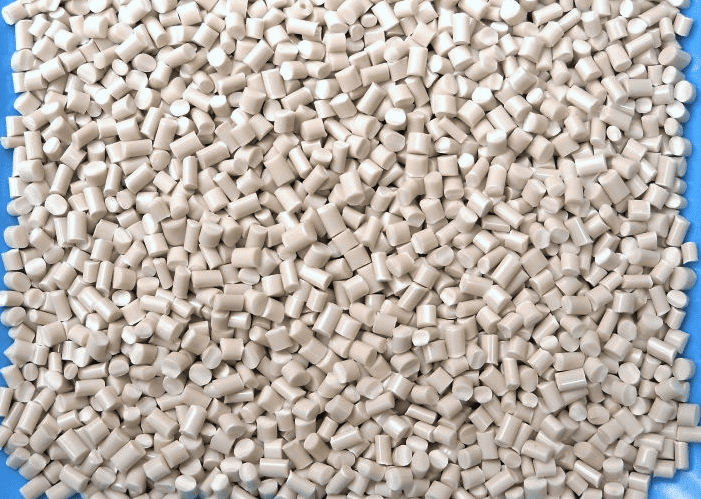

ABS(Acrylonitrile Butadiene Styrene)is a widely used engineering plastic that offers several key advantages：
- Excellent impact resistance
- Easy to process with cost-effective
- Well suited for secondary machining and customization
Overall, ABS is one of the most commonly used materials for industrial-grade plastic enclosures.

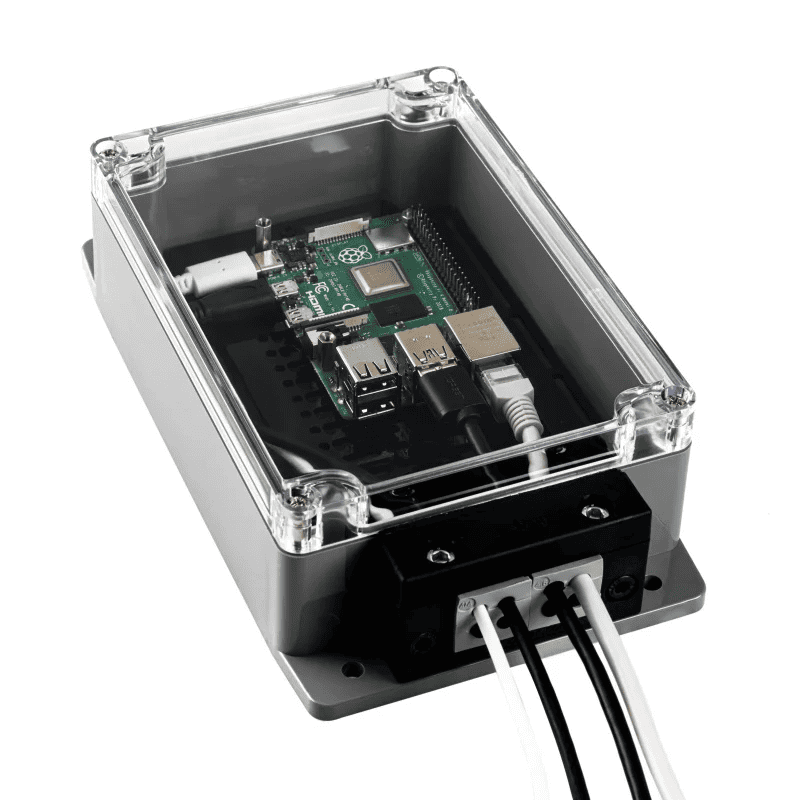

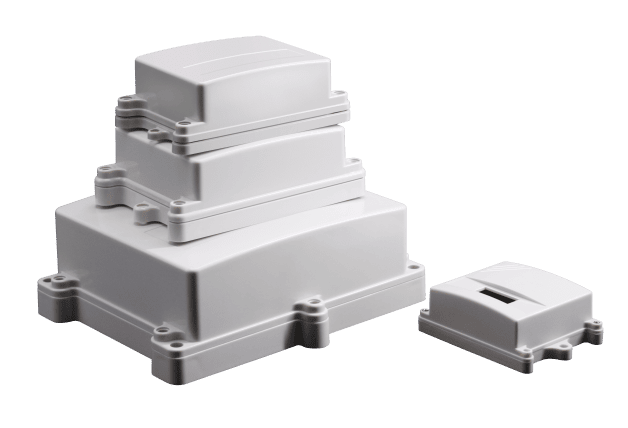

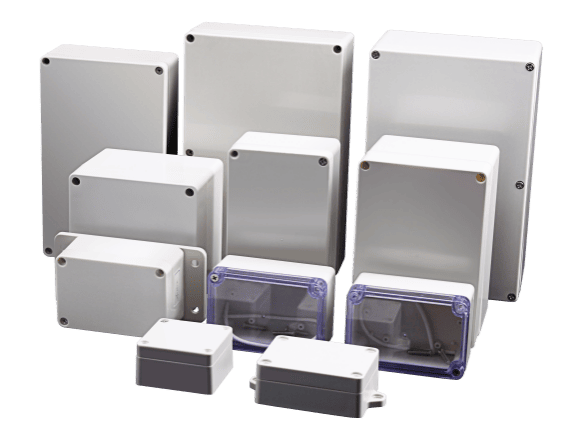

An IP65 ABS plastic enclosure is durable enclosure made from ABS material and designed to meet IP65 protection standards. It provides reliable protection for electronic components and is particularly well suited for outdoor equipment and electronics operating in demanding environments.
Material Characteristics of IP65 ABS Plastic Enclosures
- Strength and Durability
ABS material offers excellent mechanical strength and impact resistance, making it more resistant to drops and bumps than standard plastics. Through injection molding, even thin-walled designs can maintain sufficient structural integrity, which is especially important for outdoor applications.
- Easy Processing and High Flexibility
ABS plastic is easy to mold and machine using CNC, making it far more convenient than metal enclosures for drilling holes, tapping threads, or embedding studs. For applications requiring multiple interfaces, display windows, or button openings, ABS enclosures can quickly accommodate secondary modifications and customizations.
- Cost Advantage
Compared to aluminum or other high-end materials, ABS offers lower material and processing costs. For high-volume, budget-conscious products—such as sensor enclosures, control boxes, or instrument housings—ABS provides excellent value for money.
- Limitations and Solutions
ABS has lower weather resistance compared to PC or engineering-grade reinforced plastics. Prolonged exposure to outdoor UV light can cause yellowing and brittleness over time. However, this can be significantly mitigated by adding UV stabilizers to the material or applying a UV-protective coating on the surface, effectively extending its outdoor lifespan.
Why the IP65 Protection Standard Matters？
Many people focus on size and appearance when selecting an enclosure, often overlooking its protection rating. For outdoor equipment, however, the IP rating determines whether the product can operate reliably.
Devices rated IP65 are fully protected against dust, preventing fine particles—like construction dust—from entering and damaging internal circuitry. This is especially critical for equipment deployed outdoors for extended periods, such as in factories or along roads, where dust ingress can lead to short circuits, leakage, or connection failures.
IP65 enclosures are also resistant to water jets from any direction, keeping rain or splashing water out. This ensures that products like lighting controllers, outdoor gateways, and security devices remain dry and fully functional even during rain, washdowns, or high-pressure cleaning.
Application Scenarios and Real-World Examples
1. Outdoor IoT Nodes
In smart agriculture and smart city deployments—such as environmental monitoring, weather sensors, and wireless communication nodes—IP65 ABS enclosures protect the internal PCB from wind, rain, and dust, ensuring more stable operation of the devices.
2. Lighting Control and Power Boxes
LED drivers and outdoor lighting control modules installed in IP65 enclosures are effectively shielded from moisture and dust, while also allowing convenient on-site wiring.

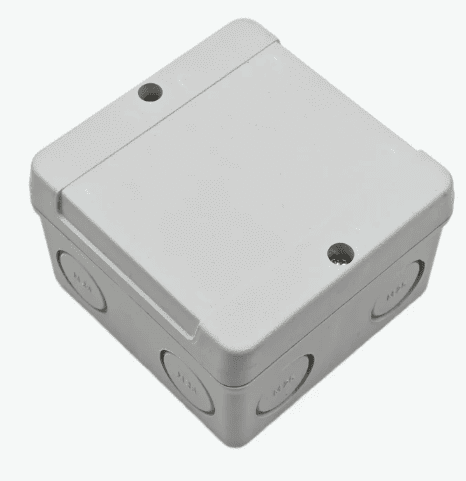

3. Industrial Field Terminal Boxes
During factory automation upgrades, these enclosures can serve as sensor junction boxes or control terminals. They offer low cost, easy installation, and compliance with national protection standards.
4. Security System Housings
Camera power boxes and network device distribution boxes used alongside outdoor cameras also require IP65-rated enclosures to ensure protection against environmental exposure.
Common Misconceptions and Key Considerations
| Misconception | Reality |
| Thicker enclosures are always more waterproof | Proper design and sealing structure are far more important |
| Plastic enclosures are not as strong as metal | ABS is sufficiently robust for most industrial equipment |
| IP65 means fully waterproof | IP65 protects against water jets, not full immersion |
